TC2030-CTX-NL-LEMTA · Cortex Cable for Atmel-ICE
€50.00
- From 1 pcs: €50.00 / pc
- From 20 pcs: €46.00 / pc
- From 30 pcs: €45.00 / pc
Available, delivery time: 1-3 days
Only 3 left in stock
Product information "TC2030-CTX-NL-LEMTA · Cortex Cable for Atmel-ICE"
Short description

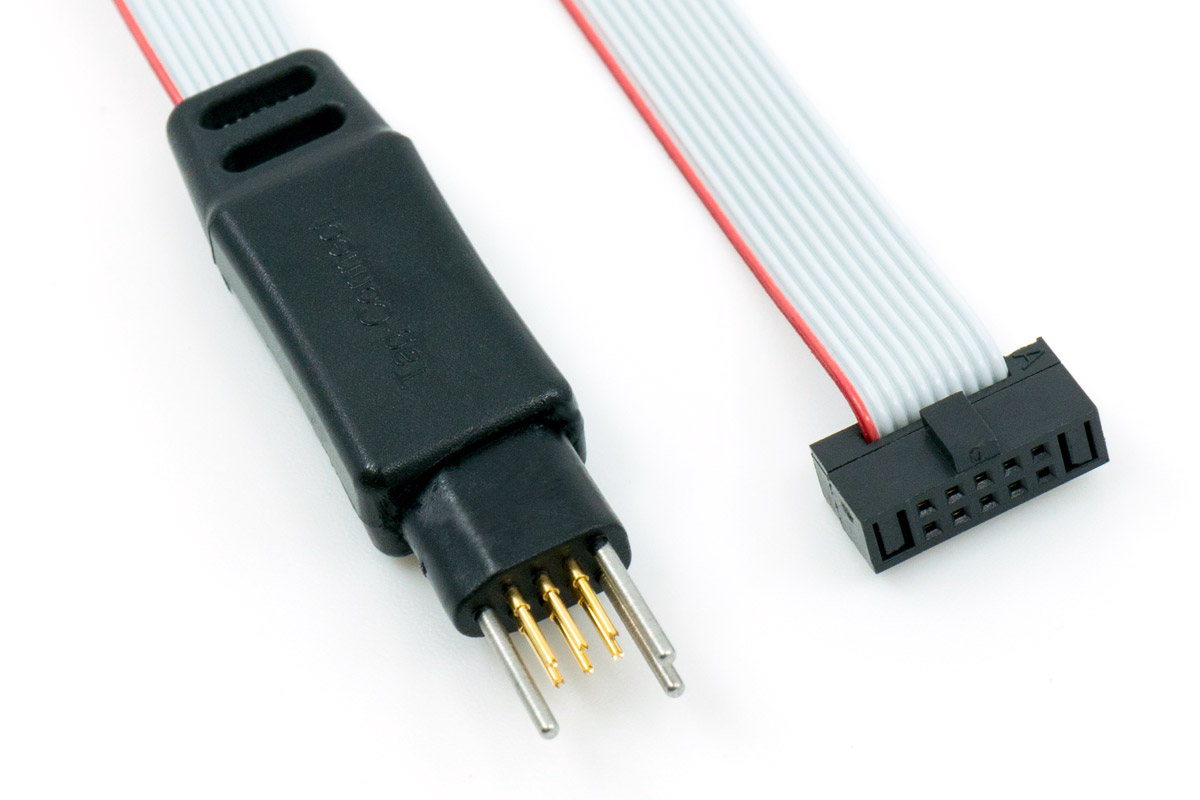

6-pin TC2030-NL Plug-of-Nails™ cable, no legs, for ARM Cortex targets — with the 10-pin 1.27 mm (0.05″) ribbon connector fitted reversed at the factory, specifically for Atmel-ICE.
Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 6 | Footprint TC2030, no Legs | 1.27 mm (0.05″) |
| Debugger | 10 | Socket Cortex-10 (FTSH-105 style), reversed for Atmel-ICE, 2 × 5 | 1.27 mm (0.05″) |
Full pin assignment: in the "Technical data" tab.
Compatible: Keil ULINK2, SEGGER J-Link and Atmel-ICE at the 10-pin 1.27 mm Cortex Debug connector (FTSH-105 style).
Not, or not directly, compatible
- 10-pin, 2 × 5, 2.54 mm (0.1″) — e.g. PEmicro Multilink, USB-Blaster: TC2030-ALT-NL
- 14-pin, 2 × 7, 1.27 mm (0.05″) — STDC14, e.g. ST-LINK V3: TC2030-CTX-NL-STDC14
- 20-pin, 2 × 10, 1.27 mm (0.05″) — Cortex with trace, e.g. Keil ULINK Pro: TC2030-CTX-20-NL
- 6-pin, 2 × 3, 2.54 mm (0.1″): TC2030-IDC-NL
- 6-pin, single row, 2.54 mm (0.1″) — Microchip PICkit 3/4/5: TC2030-PKT-NL
- RJ12 socket (6P6C) — Microchip ICD 3, ICD 4, PICkit 3, PM3: TC2030-MCP-NL
Easily confused: The 10-pin 2.54 mm box header looks similar — same pin count, twice the pitch. That is the most frequent mis-order.
Important note (Atmel-ICE)
Atmel-ICE's header has reversed pin numbering (standard pin 1 = Atmel-ICE pin 10). This LEMTA variant ships with the ribbon connector already fitted reversed — unlike the standard TC2030-CTX-NL, nothing needs to be cut or manually reversed here.
Technical data
- Version: no legs
In use with these devices
Atmel-ICE (AVR/SAM, JTAG/SPI/PDI/aWire/debugWIRE/SWD)
What counts is the connector, not the device name: compare the connector on your device with the table above. If it carries a different one, the route goes through an adapter board.
Variants
TC2030-CTX-NL — standard orientation (usable with Atmel-ICE only via manual reversal). TC2030-CTX — legged version.
| Bauform: | NL (No Legs) |
|---|
Datasheet with our advisory note (PDF — manufacturer's drawing with a note from us in front)
Pin assignment
| Cortex-10 | Signal | TC2030 |
|---|---|---|
| 1 | VCC | 1 |
| 2 | SWDIO / TMS | 2 |
| 3 | GND | 5 |
| 4 | SWCLK / TCK | 4 |
| 5 | GND | 5 |
| 6 | SWO / TDO | 6 |
| 9 | GNDDetect | 5 |
| 10 | nRESET | 3 |
Not connected: 7 (NC / RTCK), 8 (NC / TDI).

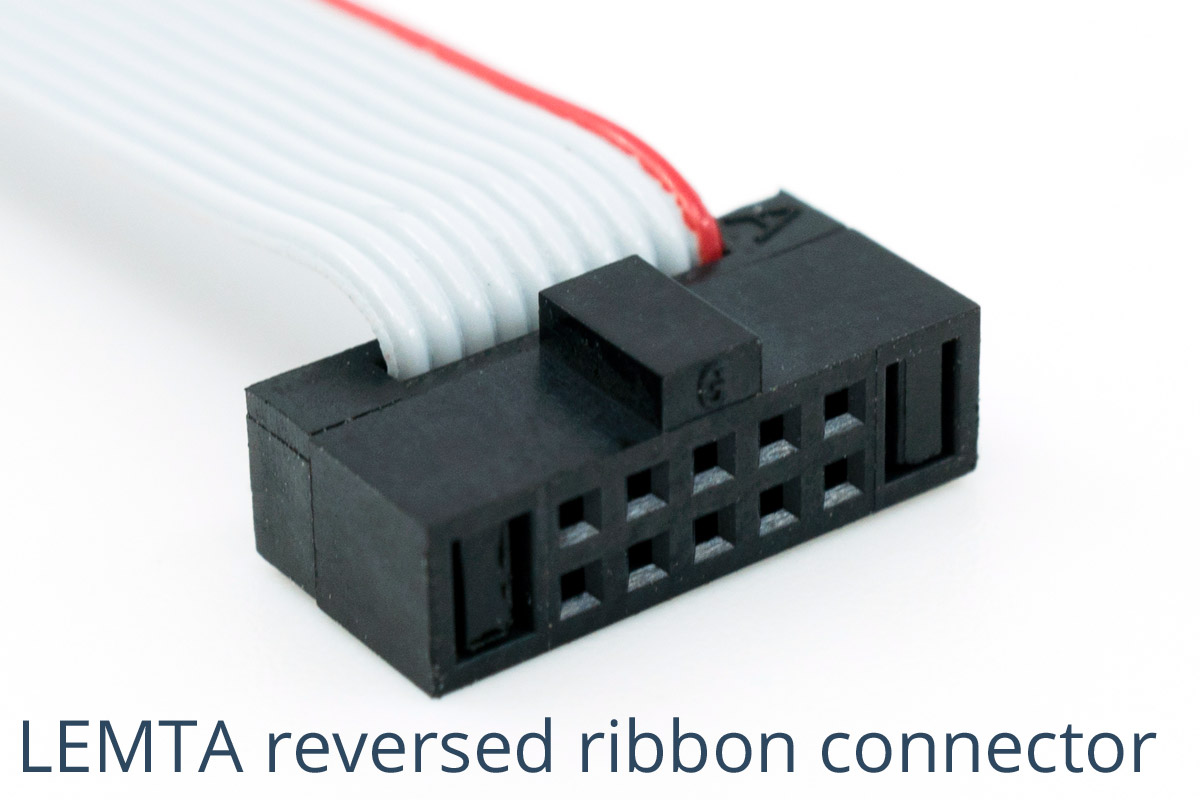

Same as the TC2030-CTX-NL, but the ribbon connector is fitted reversed at the factory: pin 1 of the connector sits where the standard version has pin 10. That is the numbering Atmel-ICE expects.
From the manufacturer datasheet (TC2030-CTX.pdf).
Accessories
Protective cap for the 6-pin TC2030 cable family (Plug-of-Nails™). Protects spring contacts, steel guide pins and — where present — retention tabs during storage and transport.
- from 1 pcs €5.00
- from 20 pcs €4.60
- from 30 pcs €4.50
Temporarily holds a TC2030-NL cable in place on the target board — for hands-free debugging where board space is tight. 3-pack.
- from 1 pcs €22.00
- from 20 pcs €20.24
- from 30 pcs €19.80
Holds a TC2030-NL cable permanently against the target board — 3-pack.
- from 1 pcs €14.00
- from 20 pcs €12.88
- from 30 pcs €12.60
Demo board carrying every Tag-Connect footprint size, for comparison before laying out your own board — 6-, 10- and 14-pin, each with and without legs, plus the EC-10 Edge-Connect™ footprint.
- from 1 pcs €2.00
- from 20 pcs €1.84
- from 30 pcs €1.80
