Adapters

Adapter board between the 20-pin ARM connector on your debugger (2 × 10, 2.54 mm / 0.1″) and a TC2030-IDC or TC2030-IDC-NL cable — for ARM SWD. The 20-pin connector goes to the debugger, not to the target board.

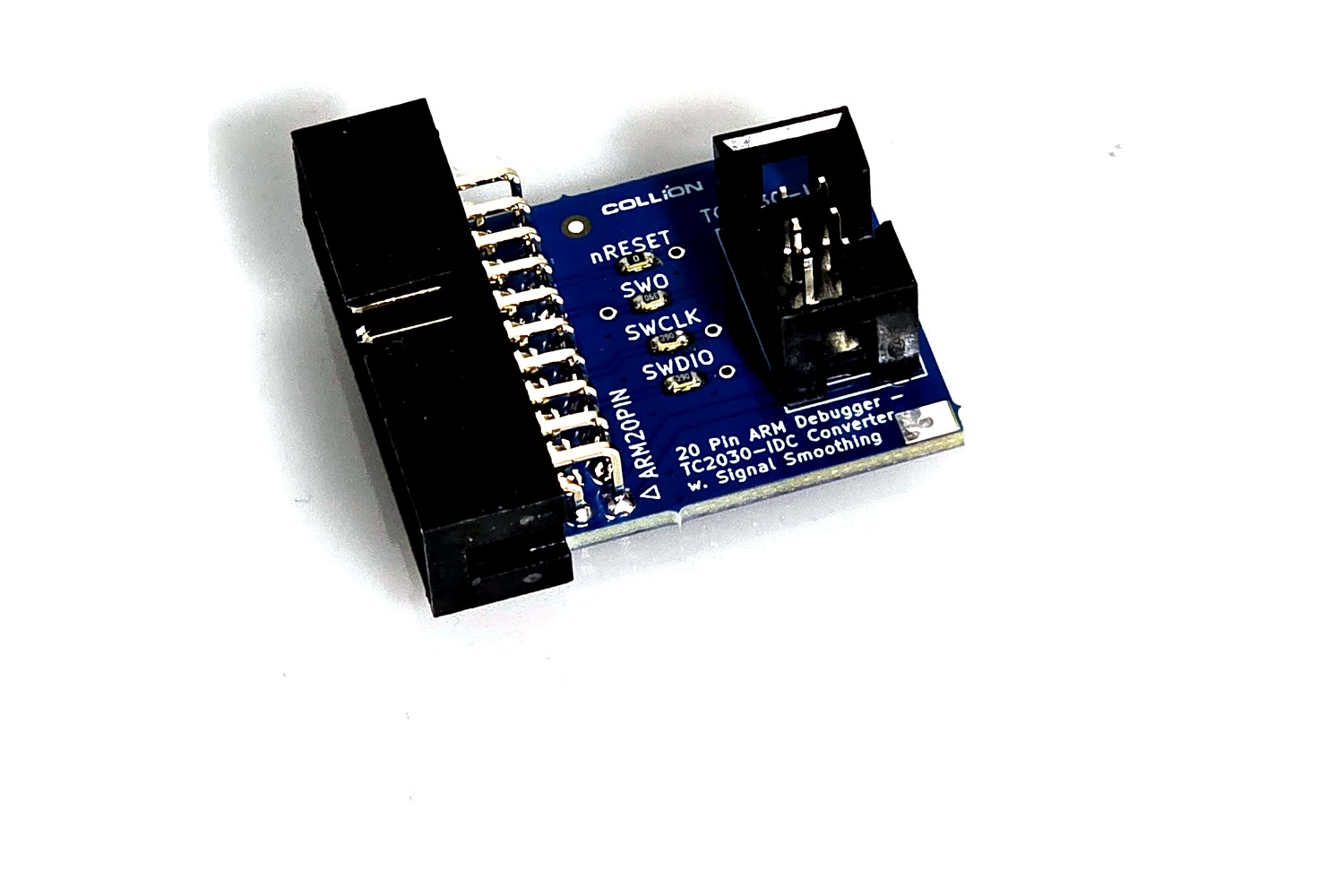

Adapter board from the 20-pin ARM debugger connector (2 × 10 pin, 2.54 mm) to 6 pin (2 × 3, 2.54 mm) for the Plug-of-Nails™ cables TC2030-IDC and TC2030-IDC-NL, and for ECV3-06-IDC. The debug lines run through series resistors; every signal is brought out individually for probing.

Adapter board between the 20-pin ARM debug header (2 × 10, 2.54 mm) and the ten-pin IDC connector of the TC2050 Plug-of-Nails™ cables. With series resistors, plug-in jumpers for supply and nTRST, measuring points and the pinout printed on the board.

Adapter board from the 20-pin ARM debugger connector (2 × 10 pin, 2.54 mm) to the 14-pin 1.27 mm (0.05″) connector (1.27 mm) used by the ST-LINK V3 and by Tag-Connect's STDC14 cables (Plug-of-Nails™). The debug lines run through series resistors; every signal is brought out individually for probing.

Adapter board with a pin header for the debugger's 20-pin ribbon cable (2 × 10 pin, 2.54 mm) to 6 pin (2 × 3, 2.54 mm) for the Plug-of-Nails™ cables TC2030-IDC and TC2030-IDC-NL, and for ECV3-06-IDC. For devices whose 20-pin connector is not freely accessible. The debug lines run through series resistors; every signal is brought out individually for probing.

USB-to-UART adapter with two target connectors: 6 pin (2 × 3, 2.54 mm) for TC2030-IDC, TC2030-IDC-NL and ECV3-06-IDC, plus 14 pin (2 × 7, 1.27 mm, STDC14) for the STDC14 cables. The IO voltage is selected by a jumper, not by choosing a different cable.

JTAG adapter from the 12-pin connector of the Lattice HW-USBN-2B programming cable to a 6-pin 2.54 mm (0.1″) pin header for TC2030-IDC, TC2030-IDC-NL and ECV3-06-IDC cables — for ECP5, CrossLink, MachXO2/MachXO3 and ispMACH. The smallest Tag-Connect footprint for Lattice devices with JTAG.

Adapter from the 12-pin connector of the Lattice HW-USBN-2B programming cable to a 10-pin 2.54 mm (0.1″) pin header for TC2050-IDC, TC2050-IDC-NL and ECV3-10-IDC cables — with DONE, PROGRAMN/ispEN, TRST and 5 V. The adapter for iCE40 and for any configuration that needs more than four JTAG lines.

Connects a TC2030-IDC (6-pin) or TC2050-IDC (10-pin) cable to Renesas E1, E2, E2 Lite, E8a or E20 emulators/debuggers — through their 14-pin 2.54 mm (0.1″) connector.

Adapter that makes TC2050-IDC cables usable for ARM JTAG and ARM SWD applications — converts the 20-pin ARM connector (2.54 mm / 0.1″) to a 10-pin header on the same pitch.

Adapter for the 2mm 14-pin header found on Xilinx's Platform Cable II and compatible programmers — to a 10-pin 2.54 mm (0.1″) header for TC2050-IDC Plug-of-Nails™ cables.
