TC2030-ALT-NL · Cable for Altera USB Blaster

TAG-CONNECT

€65.00

From 1 pcs: €65.00 / pc
From 20 pcs: €59.80 / pc
From 30 pcs: €58.50 / pc

Available in 7 days, delivery time 1-3 days

Product number: TC2030-ALT-NL

Product information "TC2030-ALT-NL · Cable for Altera USB Blaster"

Short description

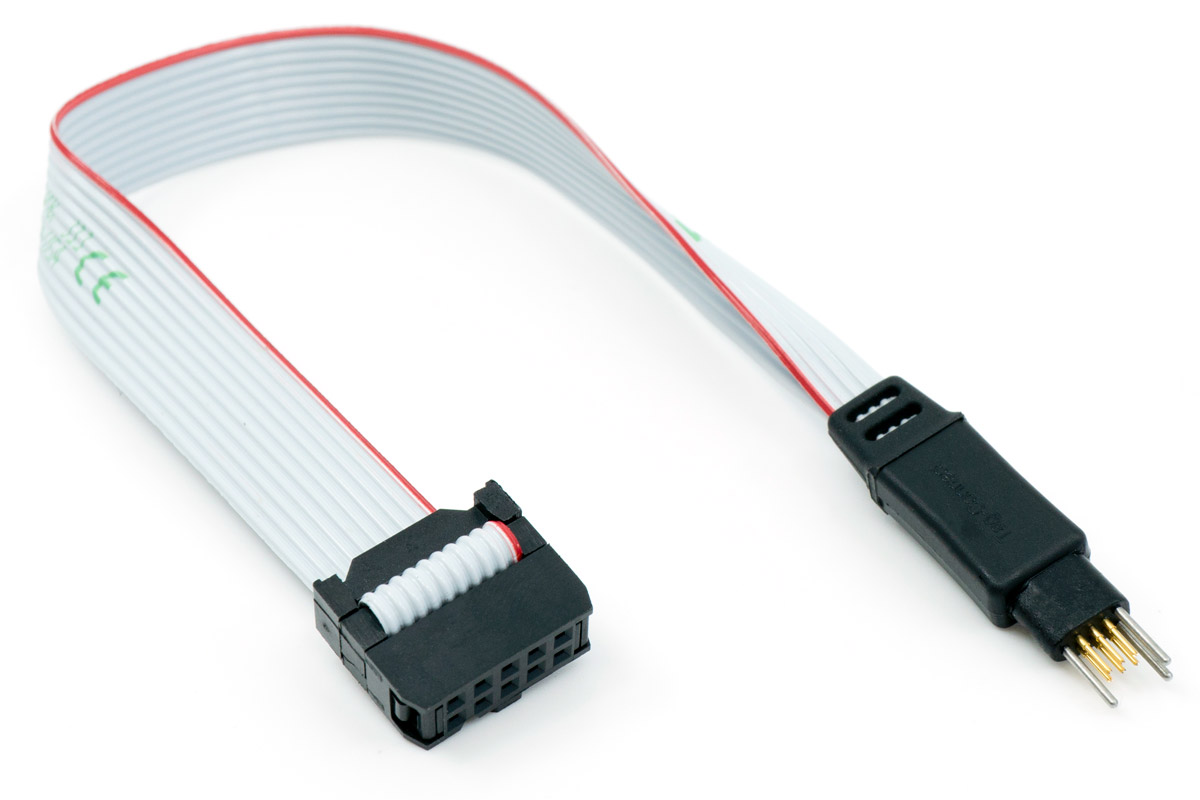

Connects a 6-pin Plug-of-Nails™ target (no legs) to a 10-pin 2.54 mm (0.1″) IDC socket, for select Altera USB Blaster/ByteBlaster programmers.

Connections

Side	Pins	Connector	Pitch
Board (Tag-Connect)	6	Footprint TC2030, no Legs	1.27 mm (0.05″)
Debugger	10	Socket ByteBlaster / USB-Blaster, 2 × 5	2.54 mm (0.1″)

Full pin assignment: in the "Technical data" tab.

Compatible: programmers with a 10-pin 2.54 mm pin header — among them PEmicro Multilink and Cyclone, and the Intel/Altera USB-Blaster.

Not, or not directly, compatible

10-pin, 2 × 5, 1.27 mm (0.05″) — Cortex connector, e.g. Keil ULINK2: TC2030-CTX-NL
20-pin, 2 × 10, 2.54 mm (0.1″) — ARM connector, e.g. SEGGER J-Link, Keil ULINK, ST-LINK/V2: through the adapter board COLL-ARM20-10-IDC, TC2050-ARM2010
12-pin — Lattice HW-USBN-2B: through the adapter board TC-LATTICE-10
14-pin, 2 × 7, 1.27 mm (0.05″) — STDC14, e.g. ST-LINK V3: TC2030-CTX-NL-STDC14
14-pin, 2 × 7, 2 mm — Xilinx Platform Cable II: through the adapter board TC2050-XILINX
14-pin, 2 × 7, 2.54 mm (0.1″) — Renesas E1 / E2 / E8a / E20: through the adapter board TC-RENESAS
20-pin, 2 × 10, 1.27 mm (0.05″) — Cortex with trace, e.g. Keil ULINK Pro: TC2030-CTX-20-NL
6-pin, 2 × 3, 2.54 mm (0.1″): TC2030-IDC-NL
6-pin, single row, 2.54 mm (0.1″) — Microchip PICkit 3/4/5: TC2030-PKT-NL
RJ12 socket (6P6C) — Microchip ICD 3, ICD 4, PICkit 3, PM3: TC2030-MCP-NL

In use with these devices

Intel/Altera USB Blaster (Altera JTAG) · Intel/Altera Byte Blaster (Altera JTAG)

What counts is the connector, not the device name: compare the connector on your device with the table above. If it carries a different one, the route goes through an adapter board.

Variants

TC2030-ALT — legged version.

Bauform:	NL (No Legs)

Pin assignment

ByteBlaster / USB-Blaster	Signal	TC2030
1	TCLK	4
2	GND	5
3	TDO	6
4	VREF	1
5	TMS	2
9	TDI	3
10	GND	5

Not connected: 6, 7, 8.

Pin assignment as specified by the manufacturer.
