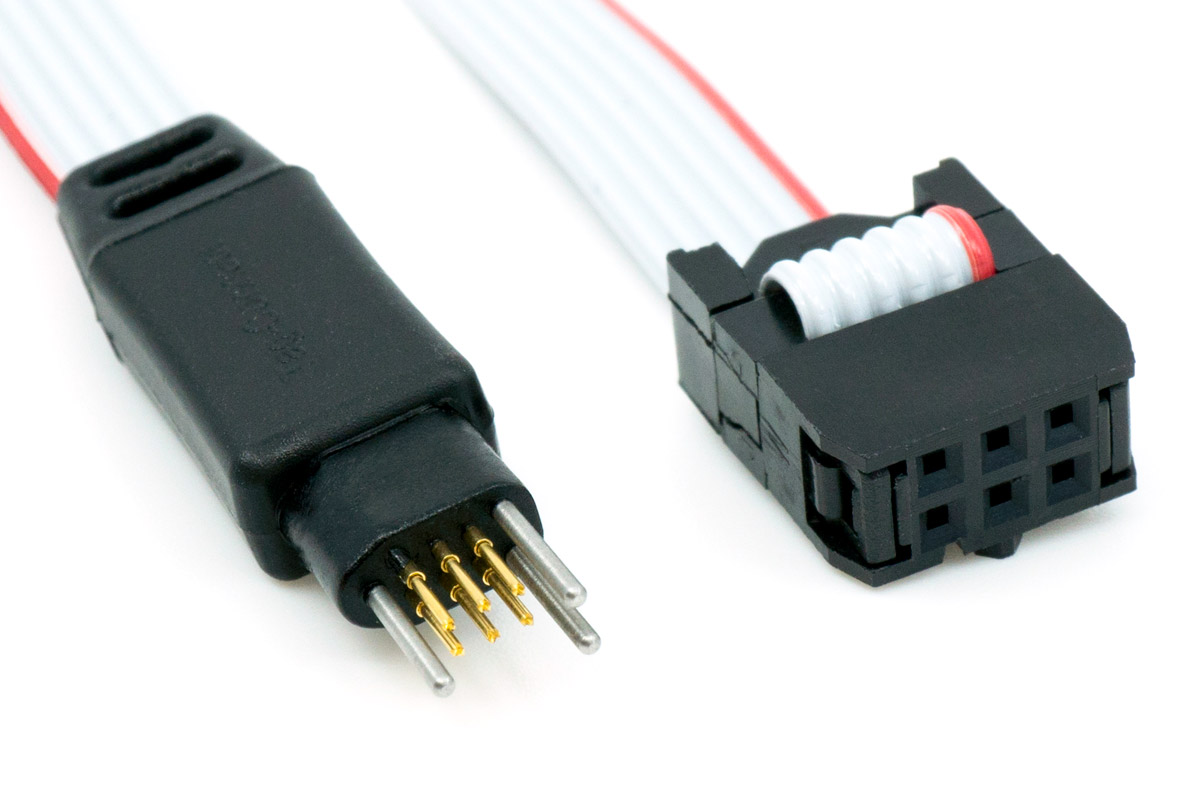

TC2030-IDC-NL-10 · 6-Pin No-Legs Cable, 254 mm (10″)
€35.00
- From 1 pcs: €35.00 / pc
Available, delivery time: 1-3 days
Only 4 left in stock
Product information "TC2030-IDC-NL-10 · 6-Pin No-Legs Cable, 254 mm (10″)"
Short description
Like TC2030-IDC-NL — six contacts on the board, 6-pin 2.54 mm (0.1″) connector at the debugger — but 254 mm (10″) instead of the standard length.
Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 6 | Footprint TC2030, no Legs | 1.27 mm (0.05″) |
| Debugger | 6 | Socket, 2 × 3 | 2.54 mm (0.1″) |
Pin assignment: contact n is on connector pin n — the cable is wired straight through.
Compatible: programmers with a 6-pin 2.54 mm pin header, and target boards carrying one.
Not, or not directly, compatible
- 6-pin, single row, 2.54 mm (0.1″) — Microchip PICkit 3/4/5: TC2030-PKT-NL
- RJ12 socket (6P6C) — Microchip ICD 3, ICD 4, PICkit 3, PM3: TC2030-MCP-NL
- 20-pin, 2 × 10, 2.54 mm (0.1″) — ARM connector, e.g. SEGGER J-Link, Keil ULINK, ST-LINK/V2: through the adapter board COLL-ARM20-06-IDC, ARM20-CTX
- 10-pin, 2 × 5, 1.27 mm (0.05″) — Cortex connector, e.g. Keil ULINK2: TC2030-CTX-NL
- 10-pin, 2 × 5, 2.54 mm (0.1″) — e.g. PEmicro Multilink, USB-Blaster: TC2030-ALT-NL
- 12-pin — Lattice HW-USBN-2B: through the adapter board TC-LATTICE
- 14-pin, 2 × 7, 1.27 mm (0.05″) — STDC14, e.g. ST-LINK V3: TC2030-CTX-NL-STDC14
- 14-pin, 2 × 7, 2.54 mm (0.1″) — Renesas E1 / E2 / E8a / E20: through the adapter board TC-RENESAS
- 20-pin, 2 × 10, 1.27 mm (0.05″) — Cortex with trace, e.g. Keil ULINK Pro: TC2030-CTX-20-NL
Technical data
- Version: no legs
- Cable length: 254 mm (10″)
In use with these devices
See TC2030-IDC-NL — identical target profile, only the cable length differs.
What counts is the connector, not the device name: compare the connector on your device with the table above. If it carries a different one, the route goes through an adapter board.
Variants
TC2030-IDC — standard length. TC2030-IDC-10 — legged, 254 mm (10″).
