TC2030-IDC · 6-Pin Debug Cable for MCU Programming
€40.00
- From 1 pcs: €40.00 / pc
- From 20 pcs: €36.80 / pc
- From 30 pcs: €36.00 / pc
Available, delivery time: 1-3 days
More than 5 in stock
Product information "TC2030-IDC · 6-Pin Debug Cable for MCU Programming"
Short description
6-pin Plug-of-Nails™ cable, legged, with a 6-pin 2.54 mm (0.1″) ribbon connector to the host. Snaps directly into a tiny PCB footprint — no mating connector needed on the target board.

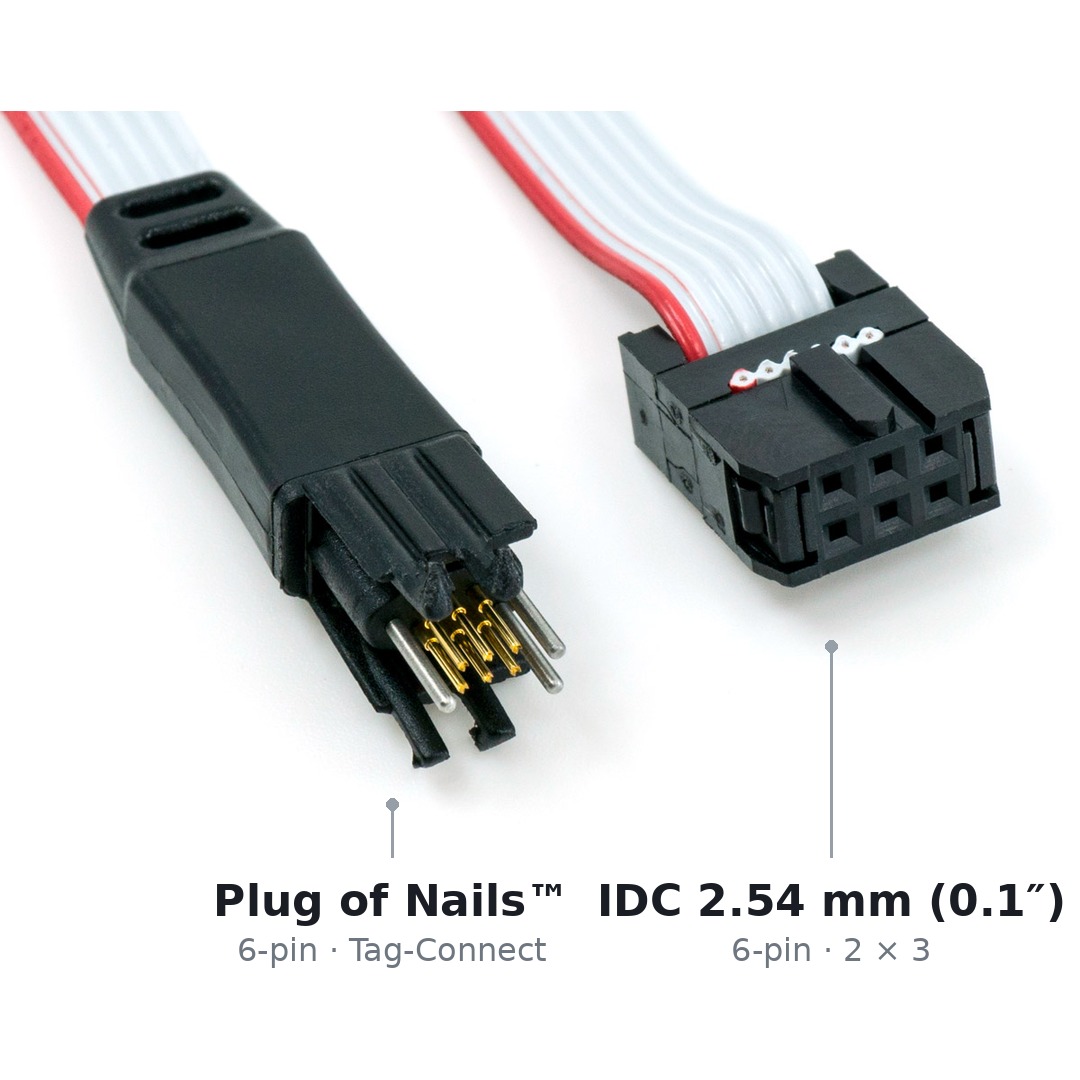

Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 6 | Footprint TC2030, with Legs | 1.27 mm (0.05″) |
| Debugger | 6 | Socket, 2 × 3 | 2.54 mm (0.1″) |
Pin assignment: contact n is on connector pin n — the cable is wired straight through.
Compatible: programmers with a 6-pin 2.54 mm pin header, and target boards carrying one.
Not, or not directly, compatible
- 6-pin, single row, 2.54 mm (0.1″) — Microchip PICkit 3/4/5: TC2030-PKT
- RJ12 socket (6P6C) — Microchip ICD 3, ICD 4, PICkit 3, PM3: TC2030-MCP
- 20-pin, 2 × 10, 2.54 mm (0.1″) — ARM connector, e.g. SEGGER J-Link, Keil ULINK, ST-LINK/V2: through the adapter board COLL-ARM20-06-IDC, ARM20-CTX
- 10-pin, 2 × 5, 1.27 mm (0.05″) — Cortex connector, e.g. Keil ULINK2: TC2030-CTX
- 10-pin, 2 × 5, 2.54 mm (0.1″) — e.g. PEmicro Multilink, USB-Blaster: TC2030-ALT
- 12-pin — Lattice HW-USBN-2B: through the adapter board TC-LATTICE
- 14-pin, 2 × 7, 1.27 mm (0.05″) — STDC14, e.g. ST-LINK V3: TC2030-CTX-STDC14
- 14-pin, 2 × 7, 2.54 mm (0.1″) — Renesas E1 / E2 / E8a / E20: through the adapter board TC-RENESAS
- 20-pin, 2 × 10, 1.27 mm (0.05″) — Cortex with trace, e.g. Keil ULINK Pro: TC2030-CTX-20
Application
Programming Atmel AVR controllers, numerous Renesas MCUs (via the TC-Renesas adapter), and Zilog devices. Also used for SPI, I²C, RS232 signal access and general test connections.
Technical data
- Version: legged
In use with these devices
ST-LINK/V2 and ST-LINK V3 SET (STM32, SWD) · Segger J-LINK (ARM Cortex, SWD/cJTAG) · PEmicro Multilink/Cyclone (ARM Cortex, SWD) · Atmel AVRISP mk.II (AVR, SPI/PDI/debugWIRE) · Xilinx Platform Cable, Digilent JTAG-HS2/HS3, Lattice HW-USBN-2B (JTAG) · Renesas E1/E2/E8a/E20 (SWD)
What counts is the connector, not the device name: compare the connector on your device with the table above. If it carries a different one, the route goes through an adapter board.
Variants
TC2030-IDC-NL — same function, no legs, footprint about the size of an 0805 SMT resistor. TC2030-IDC-10 — 254 mm (10″) cable instead of standard length.
| Bauform: | IDC-Kabelende, Legged |
|---|
Manufacturer's datasheet (PDF, copy hosted by us)
Accessories
Protective cap for the 6-pin TC2030 cable family (Plug-of-Nails™). Protects spring contacts, steel guide pins and — where present — retention tabs during storage and transport.
- from 1 pcs €5.00
- from 20 pcs €4.60
- from 30 pcs €4.50
Demo board carrying every Tag-Connect footprint size, for comparison before laying out your own board — 6-, 10- and 14-pin, each with and without legs, plus the EC-10 Edge-Connect™ footprint.
- from 1 pcs €2.00
- from 20 pcs €1.84
- from 30 pcs €1.80
Adapter board between the 20-pin ARM connector on your debugger (2 × 10, 2.54 mm / 0.1″) and a TC2030-IDC or TC2030-IDC-NL cable — for ARM SWD. The 20-pin connector goes to the debugger, not to the target board.
- from 1 pcs €38.00
- from 20 pcs €34.96
- from 30 pcs €34.20
Adapter board from the 20-pin ARM debugger connector (2 × 10 pin, 2.54 mm) to 6 pin (2 × 3, 2.54 mm) for TC2030-IDC, TC2030-IDC-NL and ECV3-06-IDC. The debug lines run through series resistors; every signal is brought out individually for probing.
- from 1 pcs €30.00
- from 2 pcs €28.50
- from 3 pcs €27.00
- from 5 pcs €25.50
- from 10 pcs €24.00
JTAG adapter from the 12-pin connector of the Lattice HW-USBN-2B programming cable to a 6-pin 2.54 mm (0.1″) pin header for TC2030-IDC, TC2030-IDC-NL and ECV3-06-IDC cables — for ECP5, CrossLink, MachXO2/MachXO3 and ispMACH. The smallest Tag-Connect footprint for Lattice devices with JTAG.
- from 1 pcs €40.00
- from 20 pcs €36.80
- from 30 pcs €36.00
Connects a TC2030-IDC (6-pin) or TC2050-IDC (10-pin) cable to Renesas E1, E2, E2 Lite, E8a or E20 emulators/debuggers — through their 14-pin 2.54 mm (0.1″) connector.
- from 1 pcs €35.00
- from 20 pcs €32.20
- from 30 pcs €31.50
Related products
Like TC2030-IDC — six contacts on the board, 6-pin 2.54 mm (0.1″) connector at the debugger — but 254 mm (10″) instead of the standard length — for extra distance between debugger and target board.
- from 1 pcs €40.00
- from 20 pcs €36.80
- from 30 pcs €36.00
6-pin Plug-of-Nails™ cable, no legs, with a 6-pin 2.54 mm (0.1″) ribbon connector. Footprint about the size of an 0805 SMT resistor.
- from 1 pcs €40.00
- from 20 pcs €36.80
- from 30 pcs €36.00
Like TC2030-IDC-NL — six contacts on the board, 6-pin 2.54 mm (0.1″) connector at the debugger — but 254 mm (10″) instead of the standard length.
- from 1 pcs €40.00
- from 20 pcs €36.80
- from 30 pcs €36.00
Edge-Connect™ connector for direct board-edge contact — no mating connector on the target board, just one locating hole. Terminates in a 6-pin 2.54 mm (0.1″) IDC ribbon connector.
- from 1 pcs €85.00
