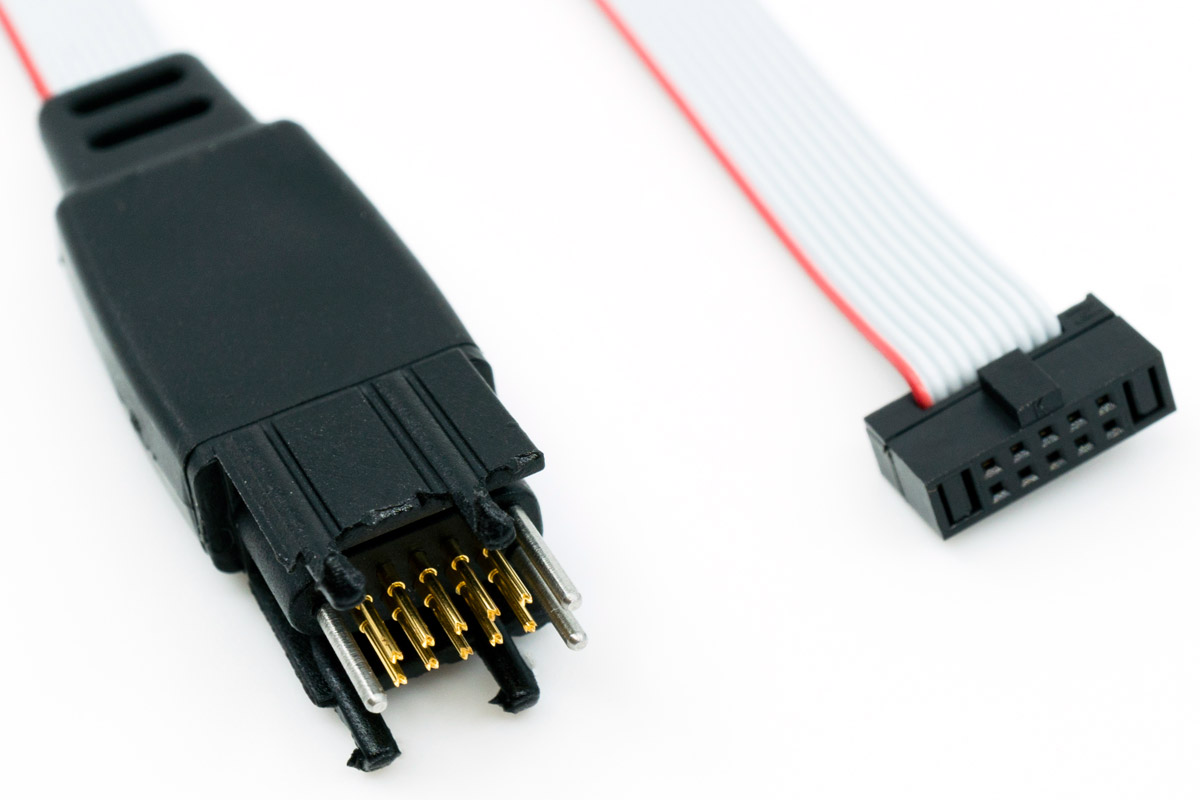

TC2050-IDC-050-ALL · 10-Pin Cable, All Pins Wired
€65.00
- From 1 pcs: €65.00 / pc
- From 20 pcs: €59.80 / pc
- From 30 pcs: €58.50 / pc
Available, delivery time: 1-3 days
Only 1 left in stock
Product information "TC2050-IDC-050-ALL · 10-Pin Cable, All Pins Wired"
Short description
10-pin Plug-of-Nails™ cable (legged) to 1.27 mm (0.05″) pitch ribbon, for ULINK2 and similar debuggers with Samtec FTSH-105-01 style micro-headers. All 10 pins connected (unlike the standard TC2050-IDC-050, which leaves pins 5/9 open for ARM compatibility).
Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 10 | Footprint TC2050, with Legs | 1.27 mm (0.05″) |
| Debugger | 10 | Socket, 2 × 5 | 1.27 mm (0.05″) |
Pin assignment: contact n is on connector pin n — the cable is wired straight through.
Compatible: debuggers with a 10-pin 1.27 mm pin header.
Not, or not directly, compatible
- 10-pin, 2 × 5, 2.54 mm (0.1″) — e.g. PEmicro Multilink, USB-Blaster: TC2050-IDC
- 14-pin, 2 × 7, 2.54 mm (0.1″) — TI MSP-FET430: TC2050-IDC-430
Easily confused: The 10-pin 2.54 mm box header has the same pin count at twice the pitch.
Technical data
- Version: legged
- Available in standard orientation or LEMTA variant (for Atmel-ICE's non-standard pin numbering)
In use with these devices
Cortex-10/MIPI-10 generic (ARM JTAG, SWD) · Cypress Miniprog 3 & 4 · Atmel ICE (AVR JTAG/SPI/PDI/aWire/debugWIRE) · Atmel ICE (SAM ARM JTAG/SWD)
What counts is the connector, not the device name: compare the connector on your device with the table above. If it carries a different one, the route goes through an adapter board.
| Bauform: | IDC-Kabelende, Legged |
|---|
