TC2070-IDC-NL-050 · 14-pin Cable for ST-LINK V3, No Legs
€68.00
- From 1 pcs: €68.00 / pc
Available, delivery time: 1-3 days
Only 3 left in stock
Product information "TC2070-IDC-NL-050 · 14-pin Cable for ST-LINK V3, No Legs"
Short description
14-pin Plug-of-Nails™ cable without legs and with a 14-pin 1.27 mm (0.05″) IDC connector — all 14 pins connected. Plugs straight into the STDC14 port of ST-LINK V3, V3SET and V3MINI and brings the ST-LINK's Virtual COM Port to the board alongside SWD and JTAG.
Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 14 | Footprint TC2070, no Legs | 1.27 mm (0.05″) |
| Debugger | 14 | Socket, 2 × 7 | 1.27 mm (0.05″) |
Pin assignment: contact n is on connector pin n — the cable is wired straight through.
Compatible: debuggers with a 14-pin 1.27 mm pin header. The pitch is the same as on the ST-LINK V3 STDC14; which signal sits on which pin is decided by your device.
Not, or not directly, compatible
- 14-pin, 2 × 7, 2.54 mm (0.1″): TC2070-IDC-NL
- 20-pin, 2 × 10, 2.54 mm (0.1″) — ARM connector, e.g. SEGGER J-Link, Keil ULINK, ST-LINK/V2: through the adapter board COLL-ARM20-14P-050
All 14 pins — why it matters
The STDC14 connector of the ST-LINK V3 carries the ARM Cortex debug port (SWD, JTAG, SWO, reset) on pins 3 to 12 and the Virtual COM Port UART on pins 13 and 14. Tag-Connect's 6- and 10-pin STDC14 cables carry only the debug part. This cable takes all 14 lines to the TC2070 footprint — if you want the target's console through the ST-LINK, this is the one.
No legs
The TC2070-NL footprint needs 14 contact pads and three holes for the alignment pins, no latch holes. The cable does not hold itself: a thumb is enough for programming by hand; for a lasting connection there is the TC2070-IDC-050 with legs.
The connector on the debugger
14 pins, 2 × 7, 1.27 mm — the STDC14 of the ST-LINK V3. Not the 20-pin ARM connector at 2.54 mm (ST-LINK/V2, standard J-Link); for that there is the COLL-ARM20-14P-050 adapter board, which converts STDC14 to 20-pin ARM.
Smaller footprints
If you do not need the Virtual COM Port, less board space will do: TC2050-IDC-NL-050-STDC14 (10-pin, full debug port) or TC2030-CTX-NL-STDC14 (6-pin, SWD).
Technical data
- Connectors: 14-pin Plug-of-Nails™ (no legs) to 14-pin 1.27 mm (0.05″) IDC (2×7), female
- Mapping: all 14 pins of the TC2070 footprint connected to the STDC14
- Debuggers: ST-LINK V3SET, ST-LINK V3, ST-LINK V3MINI (manufacturer: JTAG, SWD, UART)
Variants
TC2070-IDC-050 — with legs. TC2070-IDC-NL — 2.54 mm (0.1″) header, no legs.
On the numbering of the 14-pin family: Why the six-pin Tag-Connect counts differently
Included
The cable only. Debugger not included.
| Form Factor: | IDC-Kabelende, NL (No Legs) |
|---|
Accessories

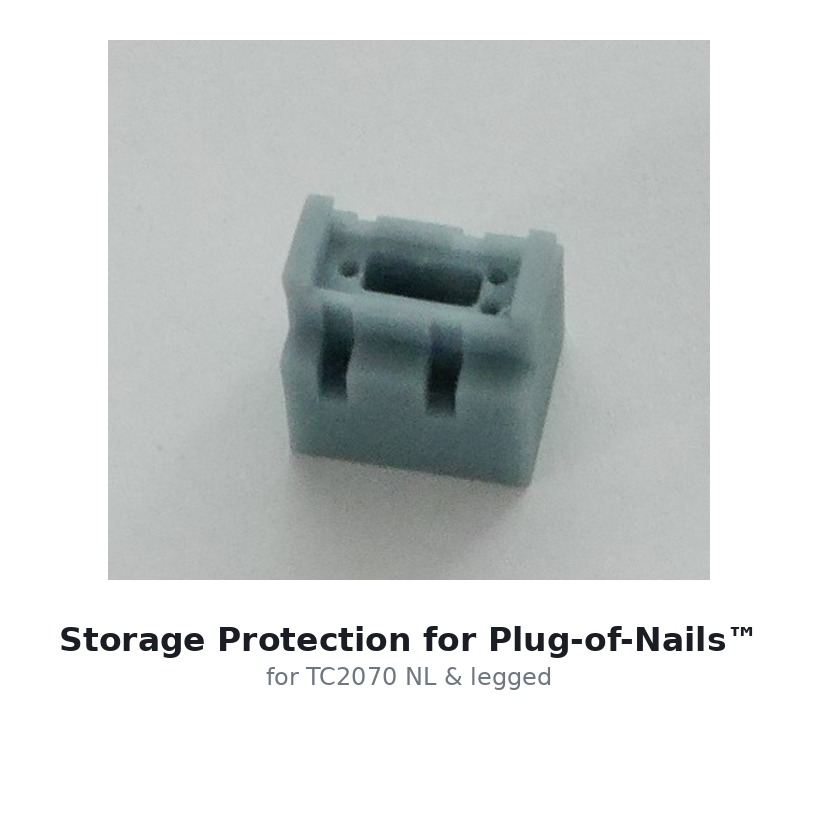

Protective cap for the 14-pin TC2070 cable family (Plug-of-Nails™). Protects spring contacts, steel guide pins and — where present — retention tabs during storage and transport.
- from 1 pcs €5.00
Holds a TC2070-NL cable against the target board — 3-pack.
- from 1 pcs €14.00
Demo board carrying every Tag-Connect footprint size, for comparison before laying out your own board — 6-, 10- and 14-pin, each with and without legs, plus the EC-10 Edge-Connect™ footprint.
- from 1 pcs €2.00
Adapter board from the 20-pin ARM debugger connector (2 × 10 pin, 2.54 mm) to the 14-pin 1.27 mm (0.05″) connector (1.27 mm) used by the ST-LINK V3 and by Tag-Connect's STDC14 cables (Plug-of-Nails™). The debug lines run through series resistors; every signal is brought out individually for probing.
- from 1 pcs €25.00
- from 3 pcs €24.00
- from 5 pcs €23.00
Storage case for Tag-Connect cables and accessories — the same one as in the TC2050 evaluation kit. Grey plastic case with carrying handle, a foam insert with compartments inside and convoluted foam in the lid. Room for one or two cables together with accessories such as an adapter, clip or grip.
