SpeedyProto Tiny PCB · Small Prototyping Board
€1.00
- From 1 pcs: €1.00 / pc
- From 20 pcs: €0.92 / pc
- From 30 pcs: €0.90 / pc
Available, delivery time: 1-3 days
More than 5 in stock
Product information "SpeedyProto Tiny PCB · Small Prototyping Board"
Short description
Small prototyping board with a continuous ground plane, no Arduino footprint. For analog circuits on minimal board space.
Application
Building an analog circuit with no fixed form factor — say, a sensor preamp or a small signal-conditioning stage — this board offers a continuous ground plane that can be contacted from any hole position.
Technical data

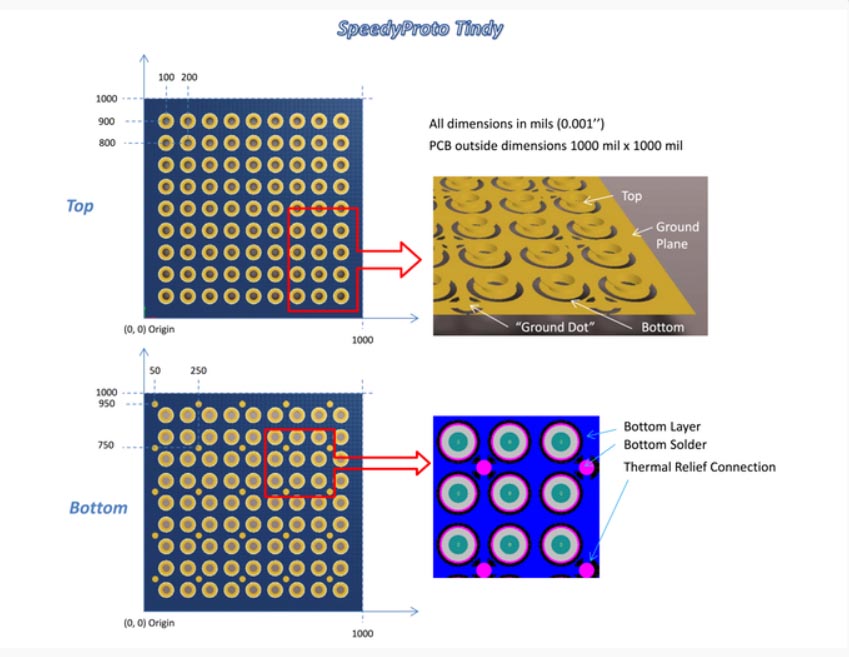

- Form factor: none (platform-independent prototyping board)
- Board size: 1000×1000mil (25.4×25.4mm)
- Ground plane: continuous, can be contacted from any hole position
Variants
SpeedyProto Uno PCB (for Arduino UNO) · SpeedyProto Mega PCB (for Arduino Mega)
Accessories
Like TC2050-IDC-NL-050, but with all 10 pins connected instead of leaving pins 5/9 open. No legs, for ULINK2 and similar debuggers with Samtec FTSH-105-01 style micro-headers on 1.27 mm (0.05″).
- from 1 pcs €65.00
- from 20 pcs €59.80
- from 30 pcs €58.50
Adapter that makes TC2050-IDC cables usable for ARM JTAG and ARM SWD applications — converts the 20-pin ARM connector (2.54 mm / 0.1″) to a 10-pin header on the same pitch.
- from 1 pcs €30.00
- from 20 pcs €27.60
- from 30 pcs €27.00
10-pin Plug-of-Nails™ cable, no legs, with a 14-pin 1.27 mm (0.05″) ribbon connector in STDC14 format for STLINK-V3/STLINK-V3MINI.
- from 1 pcs €66.00
- from 20 pcs €60.72
- from 30 pcs €59.40
10-pin Plug-of-Nails™ cable (legged) to 1.27 mm (0.05″) pitch ribbon, for ULINK2 and similar debuggers with Samtec FTSH-105-01 style micro-headers. All 10 pins connected (unlike the standard TC2050-IDC-050, which leaves pins 5/9 open for ARM compatibility).
- from 1 pcs €65.00
- from 20 pcs €59.80
- from 30 pcs €58.50
Ten-pin debug and programming cable with spring pins that lands straight on the board — no connector on the target, just ten contact pads and six holes. The four legs hold it there while you work. At the other end, a standard 2.54 mm (0.1″) ribbon header that fits nearly every debugger.
- from 1 pcs €40.00
- from 20 pcs €36.80
- from 30 pcs €36.00
