TC2030-FTDI-TTL-232R-3V3 · USB Serial Cable
€99.00
- From 1 pcs: €99.00 / pc
Available in 7 days, delivery time 1-3 days
Product information "TC2030-FTDI-TTL-232R-3V3 · USB Serial Cable"
Short description

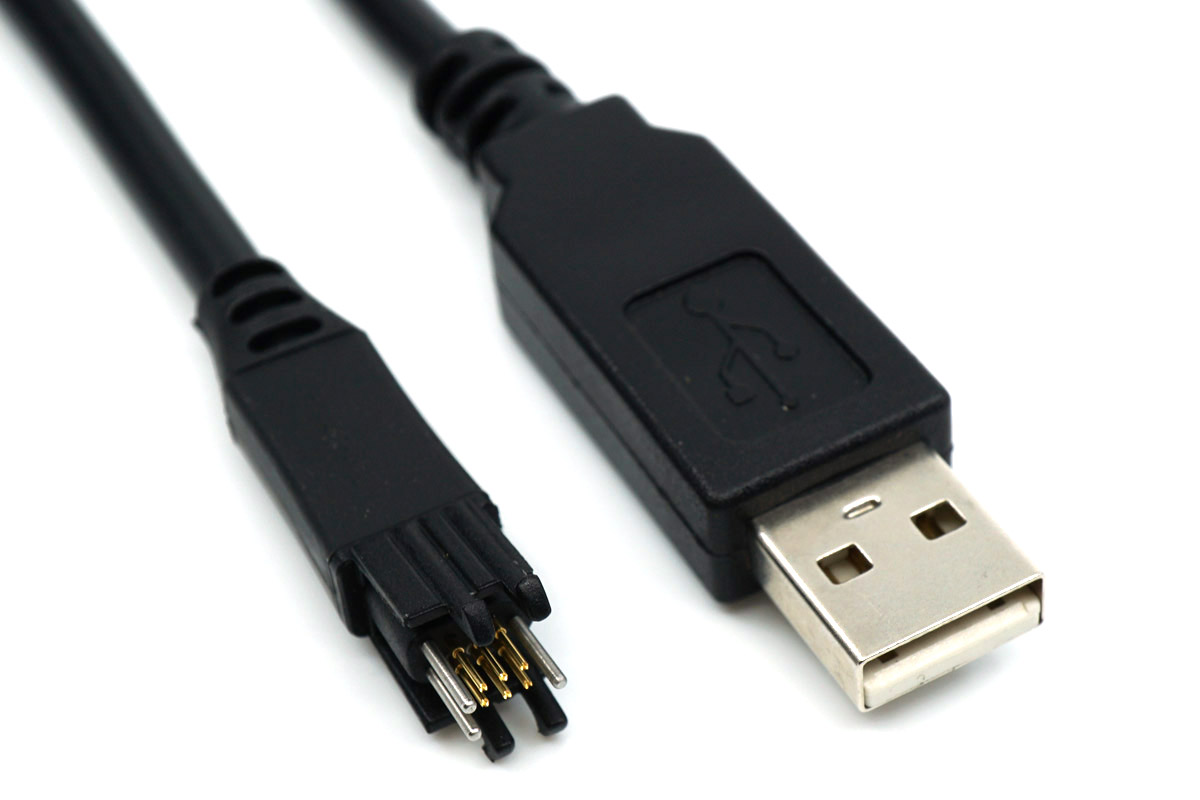

FTDI TTL-232R-3V3 USB-to-serial cable fitted with a TC2030 6-pin legged Tag- Connector. USB-A plug at the other end. No mating connector needed on the target board.
Connections
| Side | Pins | Connector | Pitch |
|---|---|---|---|
| Board (Tag-Connect) | 6 | Footprint TC2030, with Legs | 1.27 mm (0.05″) |
| Debugger | — | USB-A plug | — |
Full pin assignment: in the "Technical data" tab.
Compatible: any USB port on your computer — the conversion is done by the FTDI chip inside the plug, no debugger is involved.
Technical data
- VCC output: 5 V — caution: despite the 3.3 V logic levels, VCC actually delivers 5 V
- VCC max current: 75 mA
- UART signal level: 3.3 V TTL
- Maximum data rate: 3 Mbps
- Cable length: 1.8 m
Variants
TC2030-NL-FTDI-TTL-232R-3V3 — no legs. TC2030-FTDI-TTL-232R-5V — 5 V UART level variant.
| Bauform: | Legged |
|---|
Pin assignment
| TC2030 | Signal | Wire colour |
|---|---|---|
| 1 | VCC (output) | red |
| 2 | CTS / TMS (input) | brown |
| 3 | RXD / TDI (input) | yellow |
| 4 | TXD / TCLK (output) | orange |
| 5 | GND | black |
| 6 | RTS / TDO (output) | green |
The other end is a USB-A plug; there is no pin assignment to a debugger here — the conversion is done by the FTDI chip inside the plug.
Pin assignment as specified by the manufacturer.
Accessories
Protective cap for the 6-pin TC2030 cable family (Plug-of-Nails™). Protects spring contacts, steel guide pins and — where present — retention tabs during storage and transport.
- from 1 pcs €5.00
Demo board carrying every Tag-Connect footprint size, for comparison before laying out your own board — 6-, 10- and 14-pin, each with and without legs, plus the EC-10 Edge-Connect™ footprint.
- from 1 pcs €2.00
