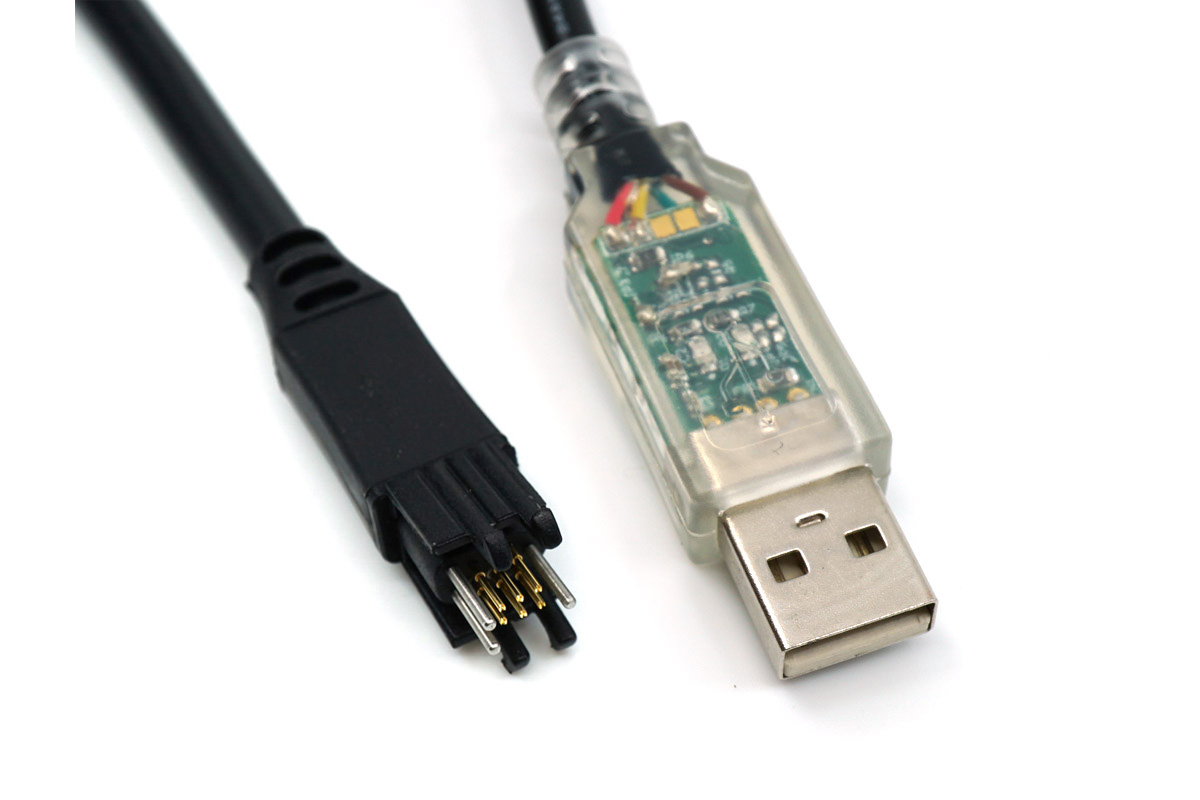

TC2030-FTDI-TTL-232RG-VIP – USB Serial Cable
€99.00
- From 1 pcs: €99.00 / pc
- From 20 pcs: €91.00 / pc
- From 30 pcs: €89.00 / pc
Available in 7 days, delivery time 1-3 days
Product information "TC2030-FTDI-TTL-232RG-VIP – USB Serial Cable"
Short description
FTDI TTL-232RG-VIP USB-to-serial cable fitted with a TC2030 6-pin legged Tag-Connector. No mating connector needed on the target board.
Technical data
- Supply voltage range: 1.8 V to 5.25 V
- Signal level: UART TTL output follows the applied VCC — VCC must be supplied externally
- Maximum data rate: 3 Mbps
- Cable length: 1.8 m
Pinout (TC2030)
1 VCCIO (red, input) · 2 CTS/TMS (brown, input) · 3 RXD/TDI (yellow, input) · 4 TXD/TCLK (orange, output) · 5 GND (black) · 6 RTS/TDO (green, output)
Variants
TC2030-NL-FTDI-TTL-232R-3V3 — no legs. TC2030-FTDI-TTL-232RG-VREG1V8 — fixed 1.8 V version.
