TC2050 Evaluation Kit · Cable, ARM-20 Adapter, Retainers, Demo Board
€70.00
- From 1 pcs: €70.00 / pc
Available, delivery time: 1-3 days
Only 5 left in stock
Product information "TC2050 Evaluation Kit · Cable, ARM-20 Adapter, Retainers, Demo Board"
Short description
Everything you need to try the Tag-Connect approach on your own board: cable, adapter to the 20-pin ARM header, both retainers, protective cap and a demo board with the footprints to hold in your hand. Put together so that nothing is missing and nothing is doubled.

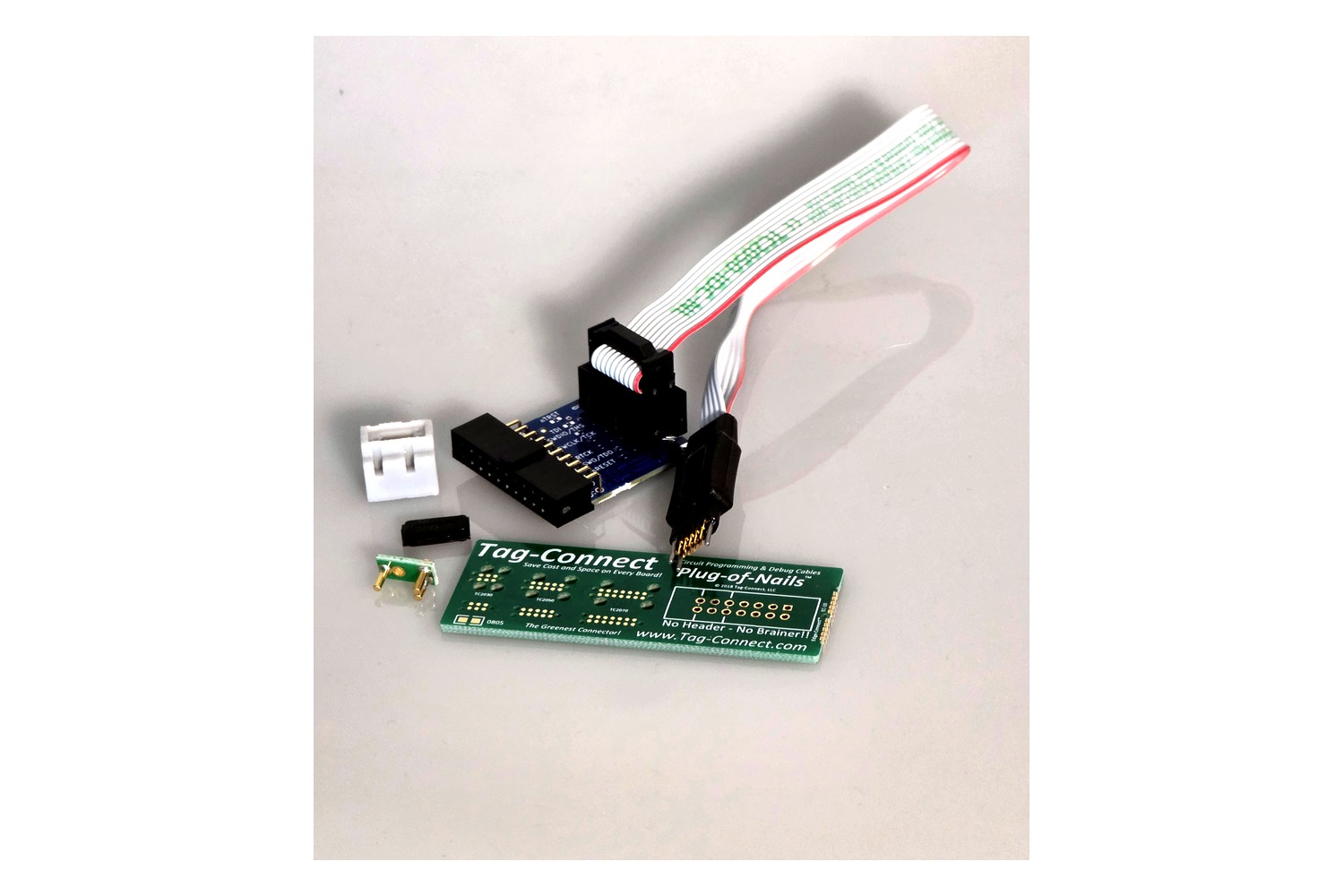

What is in the set
| Qty | Contents |
|---|---|
| 1 | TC2050-IDC-NL — ten-pin Plug-of-Nails™ cable without legs, 2.54 mm header |
| 1 | COLL-ARM20-10-IDC — adapter board to the 20-pin ARM header (J-Link, ULINK and others) |
| 1 | TC2050-CLIP — clip, grips the three alignment pins from the underside of the board |
| 1 | GRIP-10 — alternative to the clip: made of polymer, so no risk of shorting, at slightly lower holding force |
| 1 | TAG-PROTECT-10 — protective cap for the spring pins |
| 1 | Demo board with the Tag-Connect footprints in 6, 10 and 14 pin, with and without legs |
Clip and grip are included once each, for comparison. They can only be reordered as three-packs (TC2050-CLIP-3PACK, GRIP-10).
Why the cable without legs
Because the clip only fits that one. It grips the three alignment pins from underneath, and those exist only on the no-legs footprint — the legged cable holds itself and needs none. If you prefer the legged version, it is the TC2050-IDC; what separates the two is explained at length on both pages.
Two retainers, two ways
Clip and grip solve the same task differently — the clip holds harder, the polymer grip brings no risk of shorting on the underside of the board. Which one suits depends on what is down there, so the set contains both for you to compare on your own assembly.
Who this is for

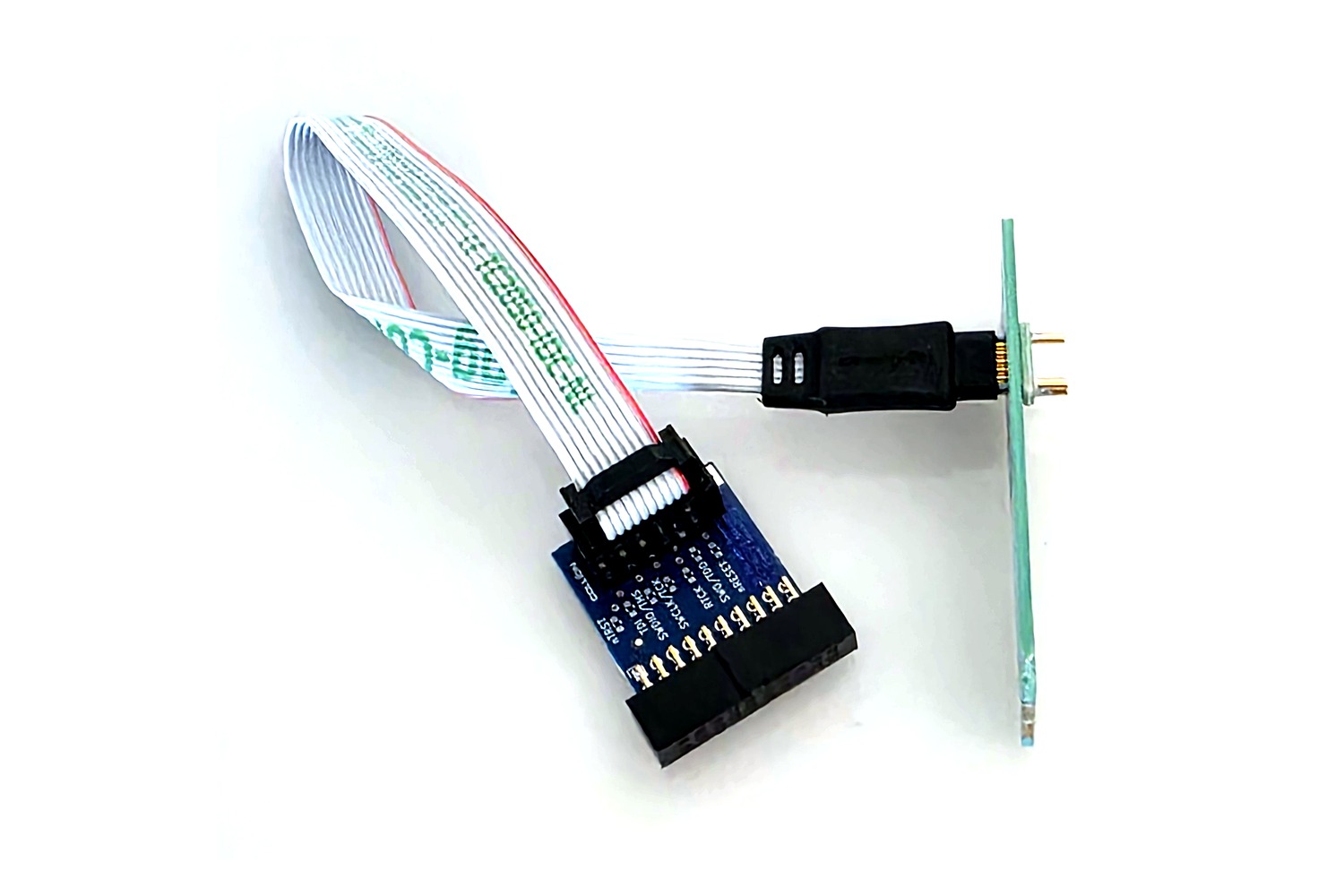

For the first footprint of your own. You put the pattern into your layout, check it against the demo board, programme with the cable and hang it on the debugger you already own via the adapter. After that you know whether access without a connector works for your boards — from your own experience rather than from a datasheet.
Technical data
- Footprint: TC2050 without legs, 10 contact pads, three alignment pins
- Debugger side: 20-pin ARM, 2.54 mm (through the adapter board)
- Modes: JTAG and SWD — the assignment is on the TC2050-IDC page
- Spring pins: rated for over 100,000 operations (manufacturer)
| Bauform: | IDC-Kabelende, NL (No Legs) |
|---|
